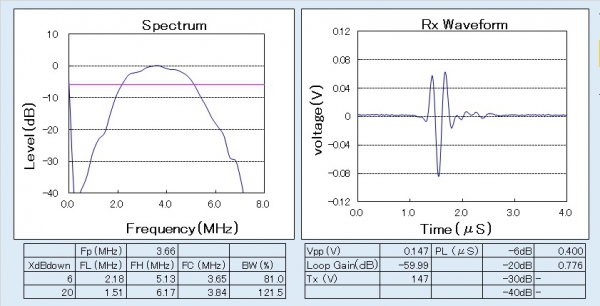

| Center Frequency | 3.5MHz |
|---|---|
| Number of Elements | 128ch |
| Radius of curvature | 60mm radius |
| Elevation Focus | 80mm |
| Elevation Aperture | 8.5mm |
| Loop Sensitivity | -60dB (with 50 Ohms loaded and 2m cable attached) |
| Fractional Bandwidth | 80% minimum (at -6dB / with 50 Ohms loaded) |
