Achieved higher sensitivity and wider bandwidth, compared with conventional materials, by adopting a high-efficient single crystal piezoelectric material.Inquiry
Improved quality by adopting a broadband (15% wider than our conventional product ratio) single crystal piezoelectric material and an optimal material for matching layer.
Improved Doppler and B-mode image sensitivity. Especially remarkable when receiving high frequency waves in the contrast echocardiography.
Optimized very fragile and hard-to-process single crystal piezoelectric material with our many years’ experience of dicing process and realized characteristically equalized array transducers.
| Center Frequency | 3MHz |
|---|---|
| Number of Elements | 64ch |
| Elevation Focus | 70mm |
| Elevation Aperture | 13mm |

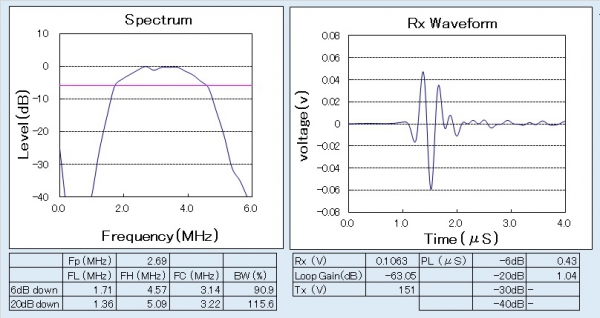

| Loop Sensitivity | -63dB (with 50 Ohms loaded and 2m cable attached) |
| Fractional Bandwidth | 85% minimum (at -6dB / with 50 Ohms loaded) |
