| Center Frequency | 3MHz |
|---|---|
| Number of Elements | 64ch |
| Lateral Aperture | 20mm |
| Elevation Focus | 80mm |
| Elevation Aperture | 13mm |

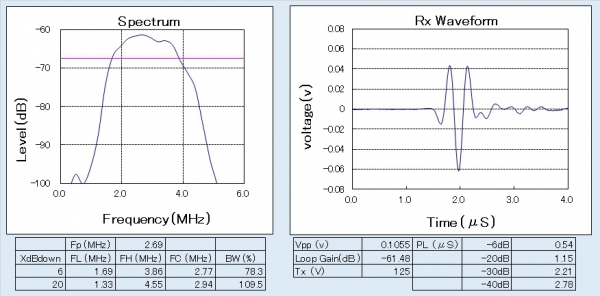

| Loop Sensitivity | -61dB (with 50 Ohms loaded and 2m cable attached) |
| Fractional Bandwidth | 70% minimum (at -6dB / with 50 Ohms loaded) |
