Downsized to reduce patients’ burden.
Achieved this small size while keeping wide angle of view, high sensitivity and broad bandwidth.Inquiry
| Center Frequency | 7.5MHz |
|---|---|
| Number of Elements | 96ch |
| Radius of curvature | 5mm radius |
| Aperture Angle | 180deg |
| Elevation Focus | 25mm |
| Elevation Aperture | 6.5mm |

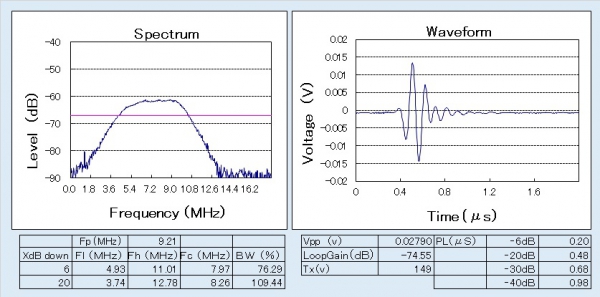

| Loop Sensitivity | -75dB (with 50 Ohms loaded and 4.5m cable attached) |
| Fractional Bandwidth | 70% minimum (at -6dB / with 50 Ohms loaded) |
